Vee Packing

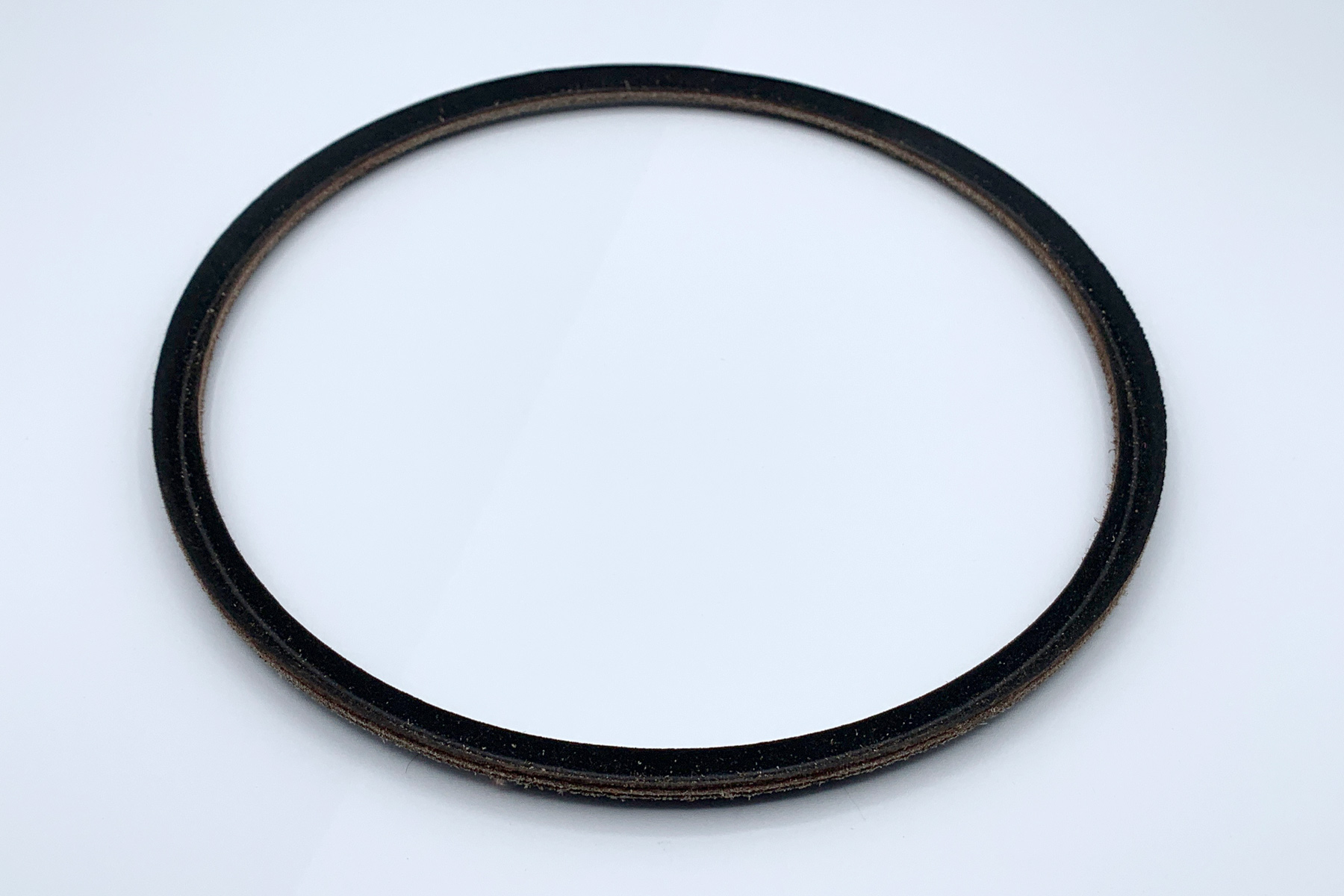

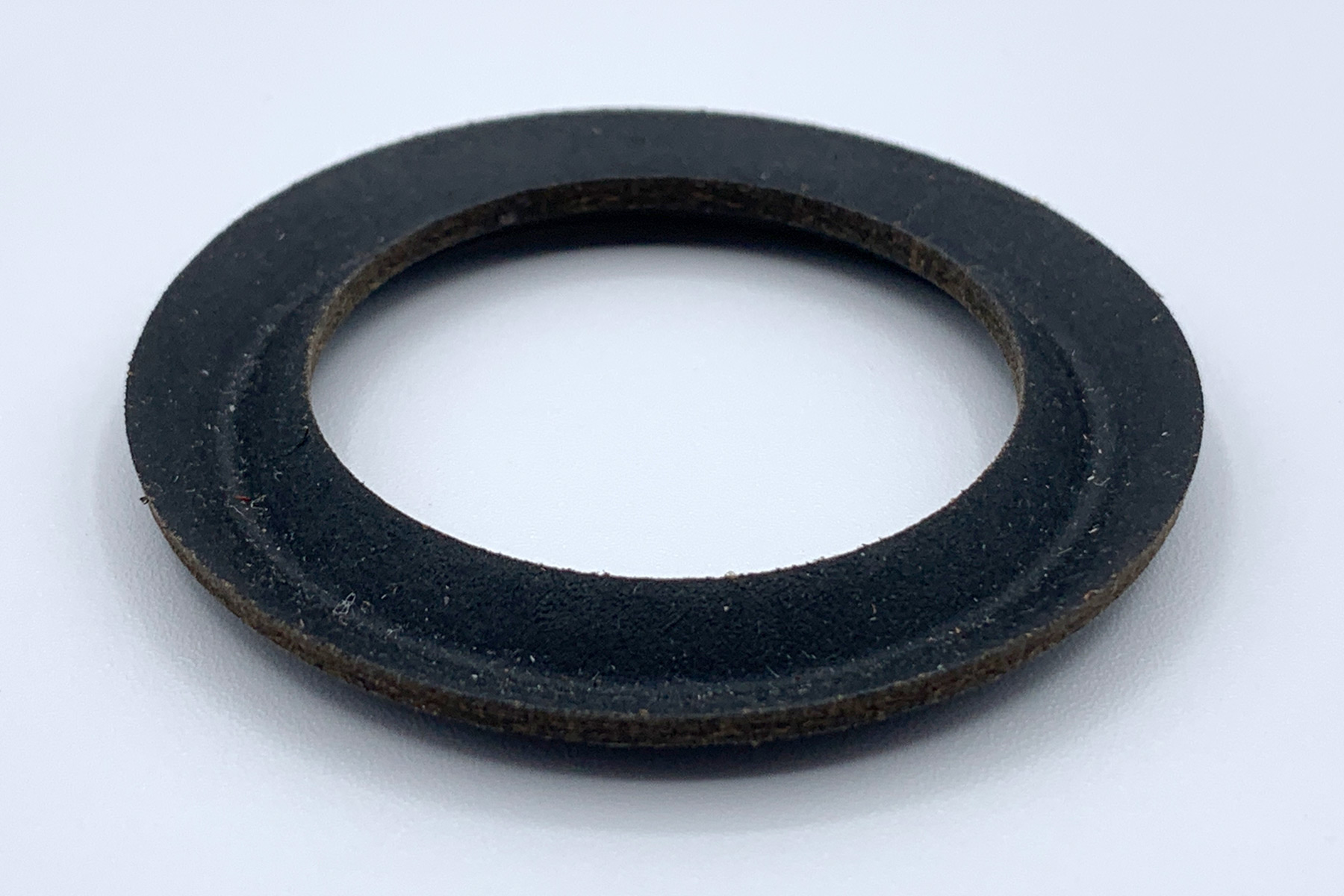

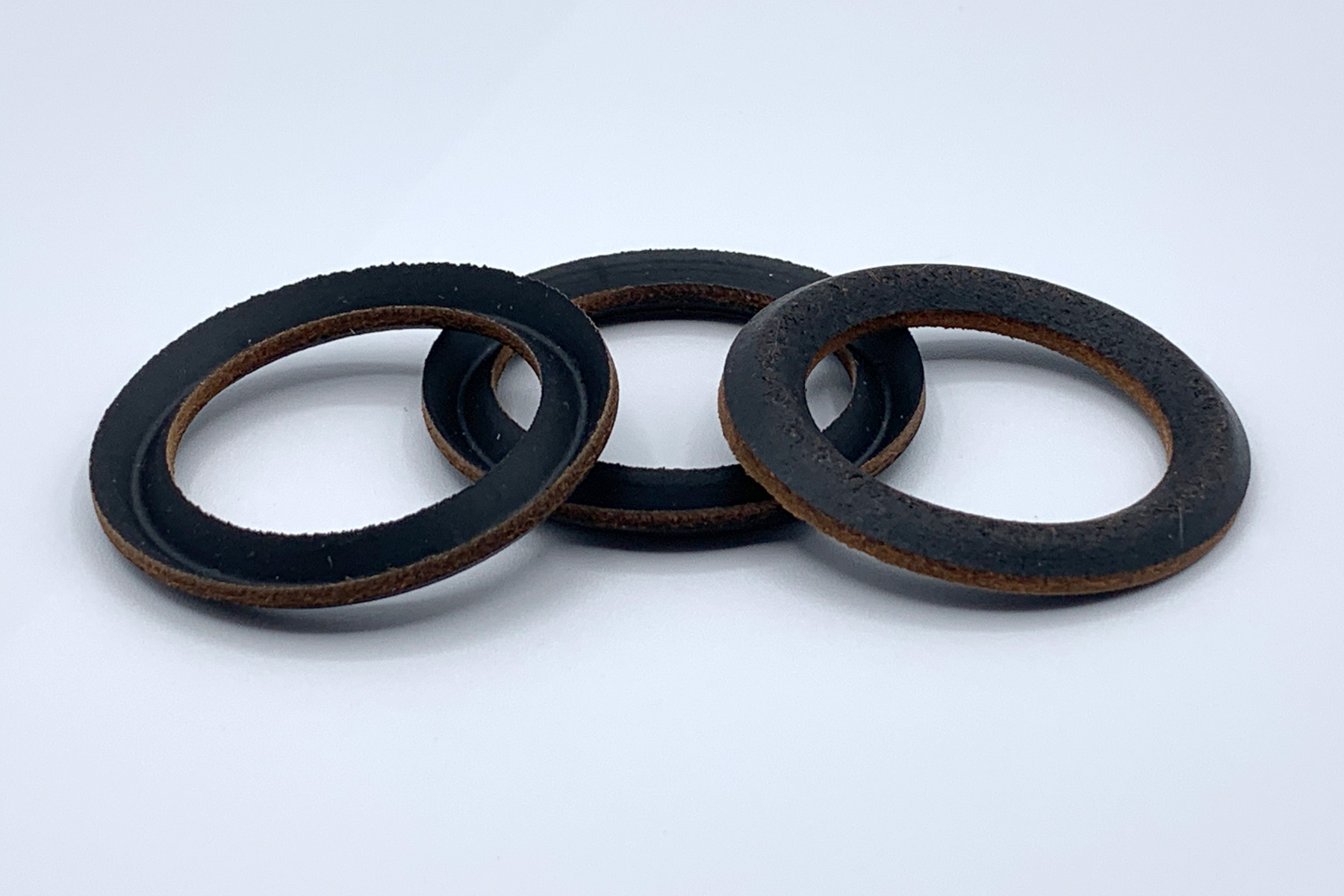

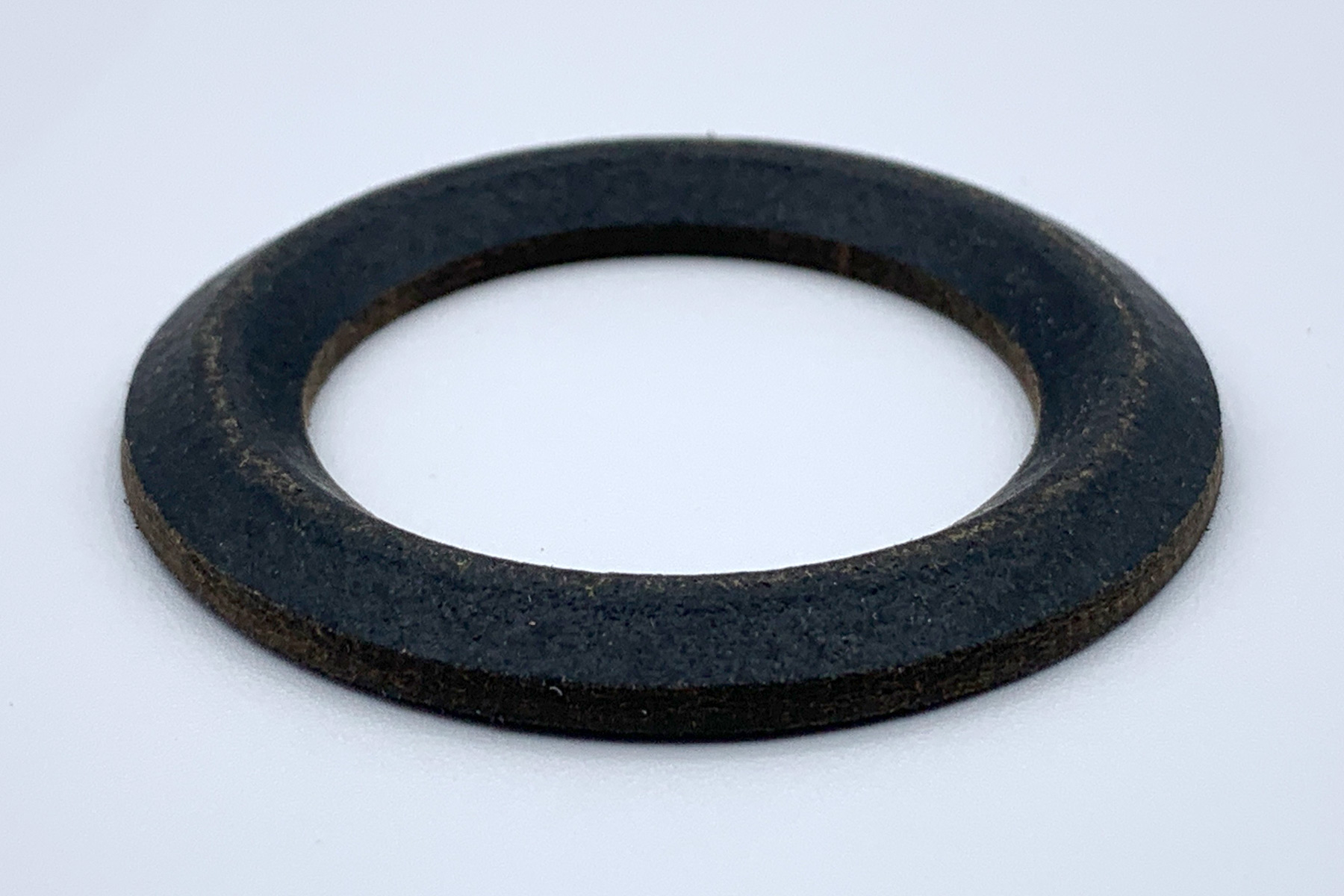

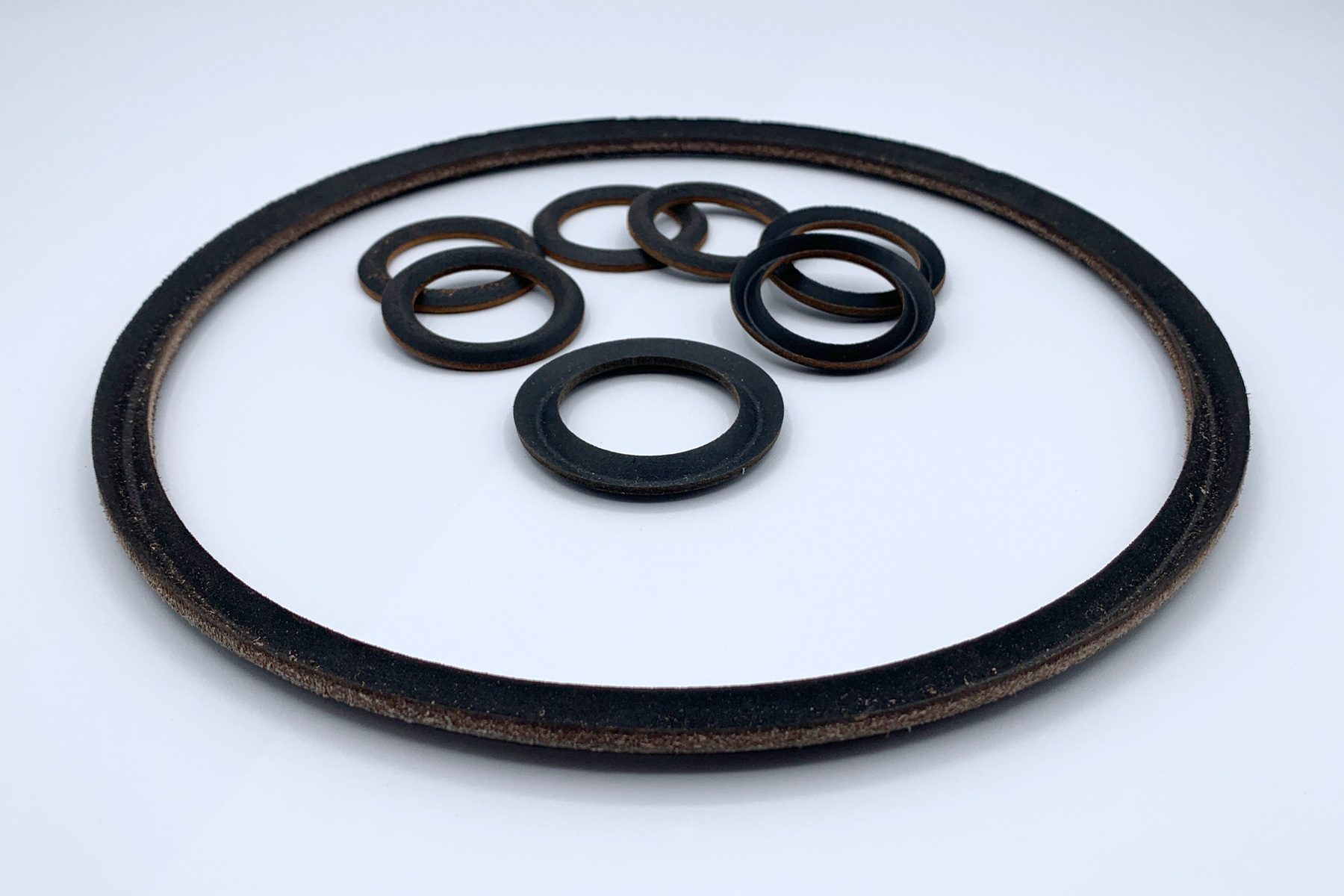

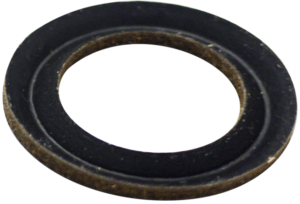

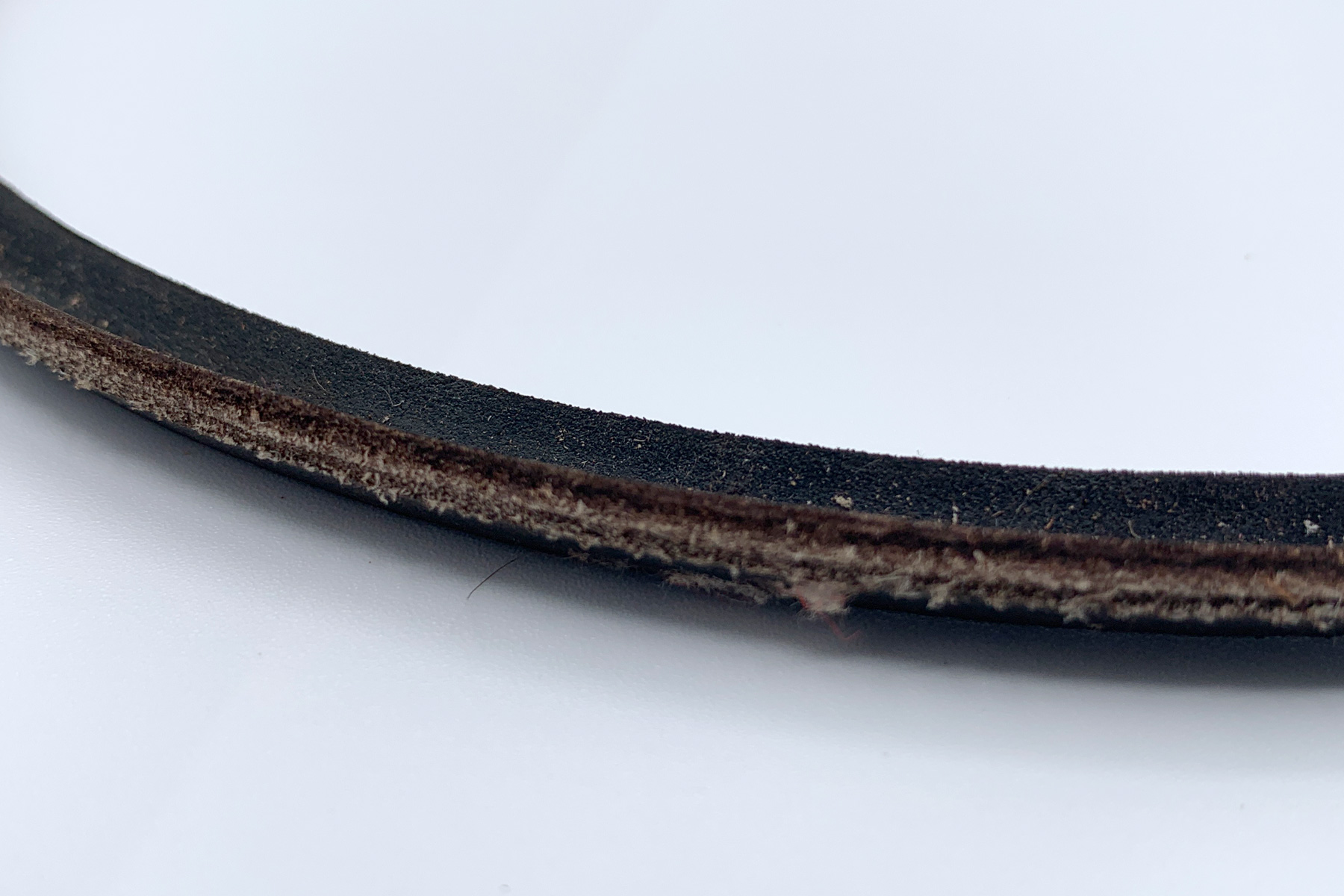

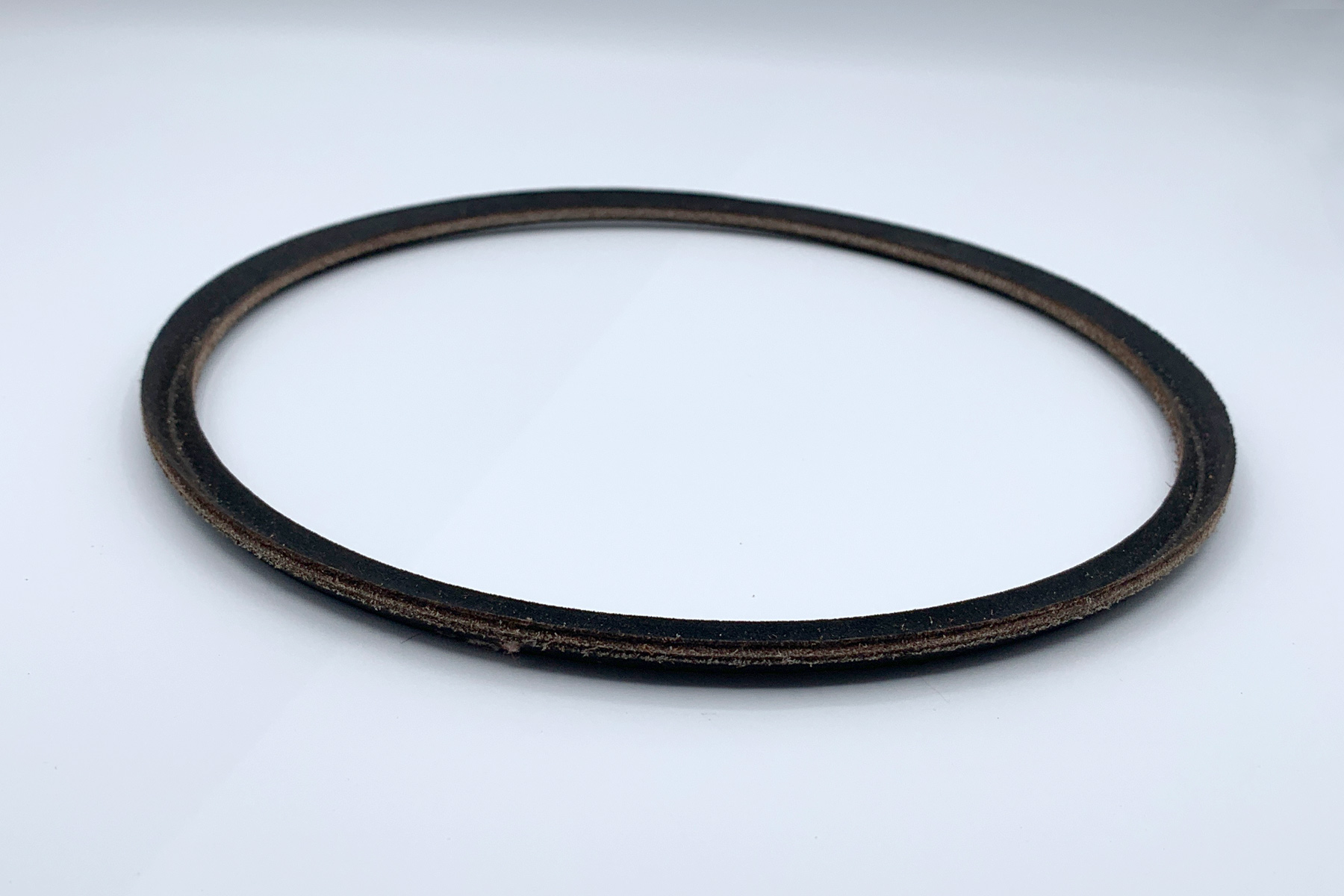

Vee packings (also called chevron packings) are engineered for dynamic reciprocating and linear motion applications. Constructed from multiple leather rings with a chevron profile, these packings deliver reliable sealing around pistons, rods, or plungers in hydraulic and pneumatic systems.
Typical Applications
Commonly installed in hydraulic cylinders, pneumatic actuators, and reciprocating machinery, leather vee packings provide consistent sealing performance across many industrial sectors.
Material & Impregnation Options
Leather vee packings can be treated with a range of impregnants (Thiokol, wax, silicone) to improve resistance to abrasion, heat, and mild chemical exposure. Custom impregnation ensures optimized performance for your specific pressure and motion profile.
Key Benefits
- Ideal for piston and rod sealing in reciprocating systems.
- Leather’s natural low friction reduces wear and extends operational life.
- Able to adapt to wear clearances and irregularities.
- Custom cross-section profiles and stack heights available.
Why Leather Matters in Vee Packing
Leather maintains sealing effectiveness while minimizing friction and wear, particularly in systems where motion frequency and abrasive content challenge synthetic alternatives.
O.D.: Outside Diameter of Packing or Stuffing Box, or Inside Diameter of Cylinder
I.D.: Inside Diameter of Packing or Diameter of Machine Recess on Piston Head, or Diameter of Piston Rod
S.H.: Stack Height
C.S.: Cross-section
R: Radius
